Main >>  Transmission >>  Factory >> T-14


From JeepTech and JeepTech Publishing LLC, the Jeep knowledge base.

All text is available under the terms of the GNU Free Documentation License.

The Borg-Warner T-14 is a 3 speed transmission with a cast iron case. I has a casting number of T14A or 1302 and a 1 1/8" 10 spline input shaft. The I6 T-14 has a 1 3/8" 6 spline output while the V6 T-14 has a 1 3/16" 10 spline output. Input shafts lengths also vary between applications.



Usage

The T-14 was the standard transmission for 225 V6 CJs and Commandos from 1967 to 1971, and for 232 and 258 I6 CJs and Commandos from 1972 to 1975. The T-14 was also the standard transmission for Jeep trucks and Wagoneers equipped with the 232 I6 from 1965 through mid-year of 1971.



Transmission 1st 2nd 3rd 4th 5th Rev
T-14 3.10 2.61 1.00     3.10



Photos



Side view of T-14 transmission.

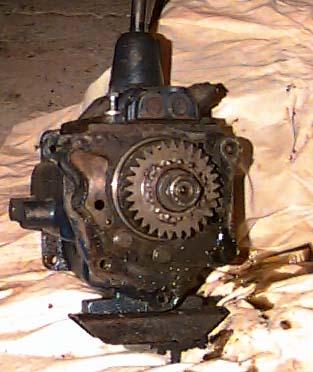

Back view of T-14 transmission.

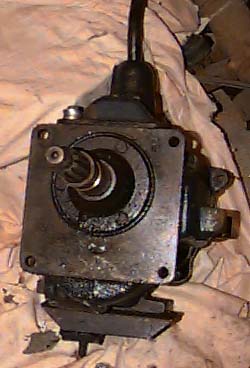

Front view of T-14 transmission.
