The AMC 401 was introduced in 1974 as an optional engine for the
J-series pickups and Wagoneers. It has a cast iron block and cylinder
head with over head valves and hydraulic lifters.
| AMC 401 V8 |
| Bore x Stroke |
4.165" x 3.68" |
| Displacement |
401 (6.57L) |
| Compression Ratio |
8.35:1 |
| Horsepower (net) |
215@4400 |
| Torque (net) |
320@2800 |
| Main Bearings |
5 |
| Valve Configuration |
OHV |
| Fuel |
4bbl |

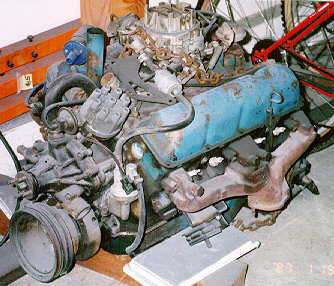

The Jeep AMC 401 V8 engine.
Photo by Christo Slee.

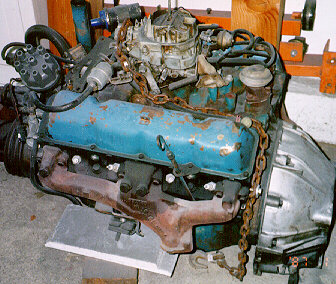

The Jeep AMC 401 V8 engine.
Photo by Christo Slee.
