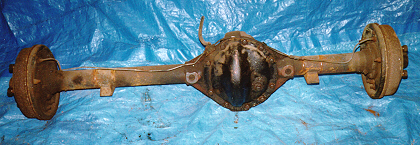

The Dana 41-2 was used in the CJ-2A after serial number #13453 in early '46 and it was used in the CJ-3A until serial number #37549 (late '50). Looking at the diff cover, it appears as tall as a Dana 44, but not as wide. It was also used in Willys Wagons and Jeepster VJs during this time period.
| Model/Version | Spring Pads | Wheel to Wheel | Years |
|---|---|---|---|
| Dana 41-2/CJ | 28" | 51" | '46-'50 |
| Dana 41-2/Willys Wagon | 28" | 51" | '46-'50 |
| Dana 41-2/Willys Pickup | 28" | 51" | '47-'50 |
| Dana 41-2/Jeepster VJ | 28" | 51" | '48-'50 |
Gear ratios may be 4.55, 4.82, and 5.38 when using differential case Dana p/n 15518 (casting 13828). Ratios of 3.73, 3.91, 4.09, and 4.27 use case with Dana p/n 15998 (casting 15999). Note: this is different split than cases for later Dana 44 axle. Ring and pinions (and cases) in 3.73-4.27 range used in some '42-'51 Studebaker cars and 1/2-ton pickups, '47-'51 Kaiser/Frazer, Mercury '49-early '50 (exc. sta. wgn.), and '49-early '50 Ford F1 1/2-ton pickups.
