What’s a differential and what’s the difference? When a vehicle is negotiating a corner, the outside wheel has to travel a grater distance than the inside wheel. Therefore, the outside wheel must turn faster than the inside wheel. The differential is the device within the axle assembly which, in addition to transmitting the power to each axle shaft/wheel, allows one wheel to turn at a different speed than the other.
What types of Differentials are there?
Conventional Differential

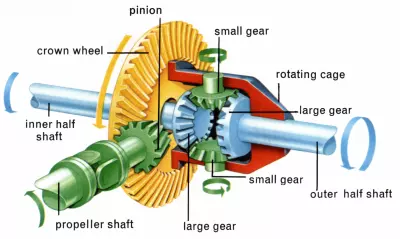

A conventional differential uses two side gears inside the differential case. Each gear is splined to accept an axle shaft. These side gears are in turn driven by a set of spider gears. The spider gears, also inside the differential case, ride on a shaft which is pinned into the differential case and through which all the power is transmitted. The case is driven by the ring gear which is bolted fast to the case. The conventional differential is fitted as standard equipment on most vehicles.
On paved roads this system is very successful, giving predictable handling, even tire wear and requiring very little maintenance. However, in off road situations where traction surfaces vary greatly, this type of differential has a major limitation. When one wheel has greater traction than the other, all the power will be directed to the wheel with the least traction. For example, if one wheel is in the air and the other wheel is still on a hard surface, then all the power will be transferred to the wheel in the air. No power will go to the one on the ground and the vehicle will not move.
Limited Slip Differentials

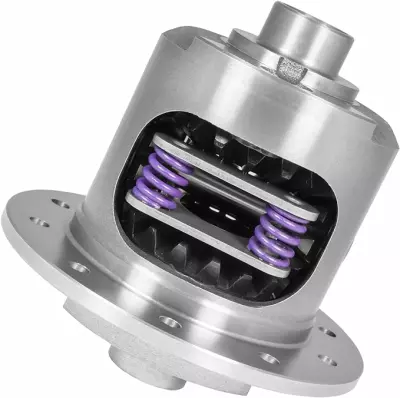

Limited slip differentials (LSD’s) come in a variety of designs. Most use friction plates, cones and/or gears to reduce slippage between each of the tires. these units have a dual power path from the differential case to the axle shafts. some power is transmitted through the spider gears to the side gears in the conventional manner. The remainder is transmitted by friction between the differential case and the clutch plates and the side gears. A certain amount of “clutch preload” is built into the unit in a static condition. Then, as load is applied to the differential, the separation forces between the spider gears and the side gears increases this clutch loading. This increase in friction provides for a good positive power flow from the case directly to the side gears. When traction is available to both wheels, the power going to the differential causes the plates to bind tightly together, giving even power to both wheels.
However, in a situation where there is little or no traction available to either one wheel or the other, the amount of power that can be transmitted to the other wheel which has traction is dependent on the friction or “preload” in the clutch plates. High levels of “clutch preload” will result in good torque transfer but some chattering of the clutches during cornering may occur. Lower levels of preload results in minimal chatter but reduced levels of torque transfer to the wheel with traction. Because LSD’s restrict true differential action, tire wear is accelerated. Changes in vehicle handling may also occur, particularly in short wheelbase vehicles. Wear rates on limited slip differentials are generally higher than on other types due to the reliance on friction to reduce wheel slippage. Also, special lubricants may be required to minimize rough and noisy operation. Despite their limitations, LSD’s are popular as original equipment options as well as an aftermarket replace because:
* Some traction improvement off road is provided
* Vehicle handling idiosyncrasies are not excessive
* Installation is simple
* Cost is reasonable
Automatic Locking Differentials
Automatic locking differentials transmit power to each wheel through a pair of dog clutches. Differential action, such as when cornering is provided by automatically disengaging the appropriate clutch when one wheel rotates faster than the other. This results in differential action which occurs in ratcheting stages rather than being smooth and progressive.
Power received by the differential is automatically directed to the wheel with greater traction. Therefore, if one wheel is lifted off the ground, the other wheel will receive the total power applied to the differential to maintain vehicle mobility. Traction is far superior to conventional and limited slip differentials. While automatic locking differential provide excellent performance off road, vehicle handling, particularly on highway, is sacrificed. Unlocking during cornering can be sudden, resulting in a rapid change of direction, particularly in short wheel based vehicles. During sharp cornering an audible racheting sound usually occurs as differential action takes place and a loud banging noise may be heard when the unit locks up again. Tire wear usually increases. On 4WD vehicles, installation is normally considered for the rear axles only. Front axle installations can cause extreme difficulties in steering.
Manually Lockable Differentials
Manually lockable differentials use a conventional differential in conjunction with a mechanical locking device which can be operated at the drivers’s discretion. when locked, both axles will then turn at the same speed irrespective of the road surface. When it is unlocked, the differential functions as a conventional differential giving predictable handling, long service life and no increase in tire wear. It can be installed in both the front and rear axles without compromising on-road performance. Although manually lockable differentials are available in tractors and some military style vehicles, the installation in mass produced recreation type vehicles have been restricted by high cost and complexity of installation.
The ARB Air Locker from ARB has allowed this situation to be reversed. This unique air operated unit incorporates its activating mechanism totally inside the differential center. This avoids the need to have complicated piston arrangements hanging off the axle housing. Locking action is controlled by the drive with a push button switch inside the cab. Installation involves a bolt in replacement of the original equipment differential center, a 12 volt air compressor with reservoir and an in-vehicle mounted switch. Original equipment axles, bearings, etc. are retained. Locking/Unlocking of the unit is extremely rapid approximately 0.1 seconds) and may be achieved at any vehicle speed. No special maintenance is required and servicing of other vehicle components is unaffected. Standard lubricants are used. jeepfan.com Wrangler TJ Unlimited Air Locker Install
In addition to air actuated lockers there are several electronic lockers available for Jeeps. Probably the most common is the factory installed electronic lockers, made by Dana, found in the Rubicon JK and JL model Wranglers. These are reliable and rather simple compared to air models which require an air compressor and tubing when all the electronic locker requires is a power source. Along with Dana, Eaton and Yukon make quality electronic lockers for Jeeps.
What’s your choice?
Picking what’s right for you will depend on a few things but mostly cost and application. If you don’t do hard off-roading or don’t want to spend a lot of money an automatic “lunch box” locker might be a good choice. These are typically inexpensive and don’t require a lot of labor time to install. In fact, many can be installed at home. We’ve put them in our Jeeps with much success – jeepfan.com Powertrax Locker Install.
When it comes to other locker types that require a full installation to a ring and pinion the labor costs will go up since most people can’t properly set up a differential at home due to the special tools involved. Personally, we’d opt for a selectable locker over a limited slip in a Jeep since they are much more effective off-road. Choosing an electronic or air actuated one will be the choice of the Jeep owner, often the total cost between the two types can be comparable.
