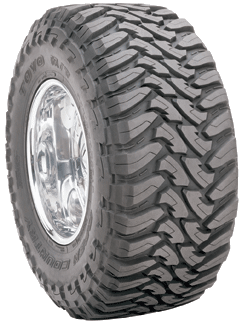

Toyo Tires Open Country M/T

Toyo Tires Open Country M/T
Information provided by Toyo Tire

A new agressive all-around light truck radial specifically designed for lifted pickup applications. The M/T incorporates new levels of technology that gives it incredible uniformity for superior handling and control in both off road and street driving. Available sizes from 33x13.50R15 - 37x13.50R24.

Steve's 2007 JK Wrangler Unlimited with 295/70/R17 on Jeep Hulk Wheels

	Features and Benefits
All Around Traction	- Agressive, attack tread design with hook-shaped blocks - Scalloped shoulder blocks - Tread block stabilizer - Deep siping in the tread blocks - Open shoulder design
Styling	- Aggressive, attack tread design - Over-the-shoulder tread - Open shoulder design - Black outline serrated lettering - Rim protector in lower sidewall
Excellent Handling On and Off Road	- DSOC II™ Technology - High turn-up, 3-ply casing - Two wide steel belts - Two spiral wound nylon cap plies - High bead filler
Excellent Grip in All Elements	- Aggressive, attack tread design - Over-the-shoulder tread - Cap/base construction - Tread block stabilizers - Open, scalloped shoulder blocks - Deep siping in the tread blocks
Smooth, Stable Ride	- DSOC II™ Technology - Computer-optimized tread design - Advanced production technology for unheard of levels of uniformity - Tread elements shaped and staggered for reduced noise - 3-ply polyester casing - Single strand, jointless bead wire construction
Durability and Long Life	- High turn-up, 3-ply polyester casing - Two spiral wound nylon cap plies - Two wide steel belts - Cap/base construction - Bruise and abraision resistant sidewall compound

Tire Size / Dimension Chart

Tire Size	Product Code	Rim Width Range (inch)	Tire Weight (lbs.)	Tread Depth	Inflated Dimensions		Static Loaded Radius (inch)	Max Load (lbs.)	Max Load dual (lbs.)	Max Pressure (PSI)	Revs Per Mile
Tire Size	Product Code	Rim Width Range (inch)	Tire Weight (lbs.)	Tread Depth	Overall Diameter (inch)	Overall Width (inch)	Static Loaded Radius (inch)	Max Load (lbs.)	Max Load dual (lbs.)	Max Pressure (PSI)	Revs Per Mile
35x13.50R15 114 C/6	361000	8.5 - 11.0	84	21	34.8	14.4	15.2	2600		35	596
33x13.50R15 119Q C/6	360290	8.5-11.0	75	21	33.1	13.9	15.4	2270		35	628
37x14.50R15 120Q C/6	360260	10.0-12.0	94	21	36.7	15.6	17.0	3080		35	566
LT315/75R16 127Q	360230	8.0-8.5-10.0	76	21	34.9	12.9	16.2	3860		65	595
LT285/75R16 126P E/10 33x11.50R16	360280	7.5-8.0-9.0	68	19	33.0	11.6	15.4	3740		80	628
LT265/75R16 123P E/10	360320	7.0-7.5-8.0	58	19	31.8	10.8	14.8	3415		80	651
38x14.50R16 129Q D/8	360250	10.0-12.0	99	21	37.7	15.6		4080		50	550
37x13.50R17 131Q E/10	360270	8.5-11.0	93	21	37.1	14.6	17.2	4300		65	560
35x12.50R17 125Q E/10	360310	8.5-10.0-11.0	83	21	34.8	13.2	16.2	3640		65	596
38x15.50R18 128Q D/8	360180	11.0-12.0-13.0	106	21	37.7	15.9	17.5	3960		50	550
35x12.50R18 123Q E/10	360090	8.5-10.0-11.0	81	21	35.0	13.2	13.7	3415		65	593
38x15.0R18 128Q D/8	360180	11.0-12.013.0	106	21	37.7	15.9	17.5	3470		50	550
33x12.50R18 118Q E/10	360340	8.5-10.0-11.0	75	21	33.0	12.7	15.3	2910		65	630
37x13.50R18 124Q D/8	360300	8.5-11.0	93	21	37.0	14.2	17.2	3525		50	523
38X13.50R18 126Q	360380	8.50-11.0	97	21	37.7	14.3	17.5	3750		50	550
38X13.50R20 124Q	360390	8.50-11.0	100	21	37.7	14.3	17.5	3525	50
38X13.50R20 124Q	360390	8.50-11.0	100	21	37.7	14.3	17.5	3525		50	550
38x15.50R20 125Q D/8	360190	11.0-12.0-13.0	101	21	37.7	15.9	17.5	3640		50	550
40x15.50R20 130Q D/8	360370	11.0-12.0-13.0	112	21	39.7	15.9	18.4	4190		50	522
33x12.50R20 114Q E/10	360330	8.5-10.0-11.0	72	21	33.0	12.6	15.3	2600		65	630
35x12.50R20 121Q E/10	360240	8.5-10.0-11.0	80	21	35.0	13.0		3195		65	592
37x13.50R20 127Q E/10	360220	8.5-11.0	94	21	37.1	14.0		3860		65	560
37x13.50R22 123Q E/10	360210	8.5-11.0	90	21	37.1	14.0		3420		65	560
40x15.50R22 127Q D/8	360200	11.0-12.0-13.0	110	21	39.7	15.9	18.5	3860		50	522
37x13.50R24 120Q E/10	360350	8.5-11.0	89	21	37.0	13.6	17.2	3085		65	561

Bold designates measuring rim width. All Toyo brand tires are subject to continuous development. Toyo Tire (U.S.A.) Corporation reserves the right to change construction, materials or specifications without notice or obligation. Contact your Toyo dealer or Toyo Tires for current information.
