TeraFlex 3.15:1 Dana 20 Low Range
Some information provided by TeraFlex

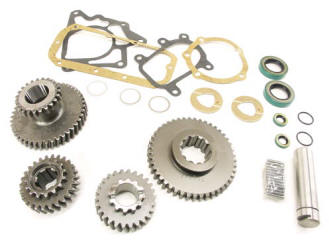

This kit reduces the 2.43:1 stock low-range ratio to 3.15:1. This kit works on '66-71 CJs, utility wagons and pickups. CJs older than 1966 require a large Dana 18 or 20 transfer case housing from a '66-79 Jeep®. Part# LOW18. The other version of the Low18 gear set is designed to be used with Saturn and Warn overdrives, and reduces the 2.43:1 stock low-range ratio to 3.15:1. This kit ships with only three gears. The additional gear, part 911098, can be purchased directly from Advance Adapters to complete the set. Part# LOW18S

TeraFlex 3.15:1 Dana 20 Low Range for Automatics

The Low20 gear reduction conversion will provide a 3.15:1 gear ratio for better off road performance. It is similar to the proven LOW20, but designed for the factory Turbo400 automatic transmission.
It uses a 15 spline input gear, which is common in vehicles from 1966-1973 with the Turo400 transmission.
It will NOT fit QuadraTrac transmissions.

Part #LOW20AUTO

Mike's 77 CJ-7 equipped with a Tera Low 20 and an automatic.
