PRESS RELEASE:
BDS Long Arm Suspension
Lift Kits for JK Wrangler and Wrangler Unlimited
After many months
of testing, BDS is proud to release the new
4-Link long arm system for the �07-08 Jeep
Wrangler. This system is a true symphony of off
road performance and on road handling. The
4-Link long arm system offers improved caster
angles which improves steering control for on
road handling as well as high speed off road
use. Disconnect the sway bars with the BDS
Ultimate disconnects and you�ll see the system
really perform. The re-buildable and greaseable
flex arms allow the suspension to flex over any
obstacle while the track bar relocation systems
help to reduce body roll as well as properly
match the steering angles.
In order to offer
this type of extreme flex, the BDS Pro-Ride
coils were designed to be able to fully collapse
and still return to their original height.
Repetitive off road use won�t even phase these
coils springs!
|
|
Braided,
stainless brake lines with Kevlar lining
are included to enhance braking
performance as well as allow for extreme

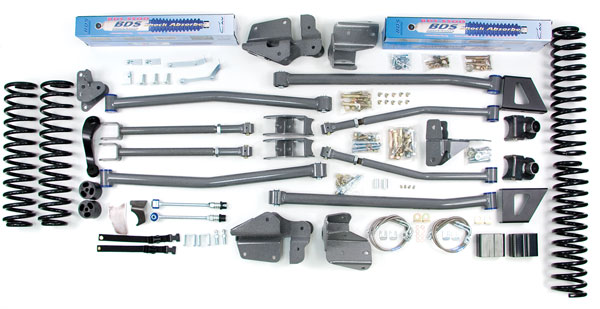

wheel travel. This complete system also
includes a forged dropped pitman arm for
reduced steering angles, bump stop
extensions, rear sway bar relocation and
easy to follow installation
instructions.
 |
|
Feature |
Benefit |
|
Long Arm 4-
Link Geometry |
The BDS
long arm 4-Link system offers superior
caster control through wheel travel.
This
is where a 4-Link design shines over any
radius arm system. The minimal change in
caster creates a truly controlled
feeling whether on or off road. |
|
4-Link
Mounting Brackets |
�� thick
brackets are used that utilize the BDS
multi-mount system which adds rigidity
and provides solid mounting points for
both the upper and lower control arms. |
|
BDS Pro-Ride
Coils |
BDS coil
springs are designed to handle full coil
bind and still return to their original
height. Basically, that means you can
smash them until they are fully
collapsed and they
will always come back. |
|
Adjustable
Upper Flex Arms |
1-3/8�
solid stock is used to make these
substantial upper arms. Not only are
these arms
adjustable, but the BDS greasable flex
end will allow for serious flexing. |
|
Solid Lower
Flex Arms |
1-3/4� x
�� wall DOM structural tubing is used to
construct these impressive lower control
arms. The control arms come with one
flex end and a urethane end. Both flex
and urethane
ends are greasable and easily
re-buildable with standard tools. |
|
Ultimate
Sway Bar Disconnects |
BDS
ultimate sway bar disconnects allow for
one handed operation. This adjustable
disconnect allows for quiet long term
performance. |
|
Front & Rear
Track Bar Relocation |
These
BDS track bar relocation brackets are
located on the axle in order to reduce
roll
center. These heavy duty brackets not
only flatten out the track bar angles
for reduced
bump steer, but they also have
additional attachment points rather than
just attaching to
the OE track bar mounts. |
The BDS long arm kits are available in 5.5" and
6.5" sizes.
|
