The AMC 360 was introduced in 1971 in J-series pickups and Wagoneers. It has a cast iron block and cylinder head with over head valves and hydraulic lifters.
In 1971, the AMC 360 have very high rating. I would assume these are gross ratings and the later are net ratings.
| AMC 360 V8 | |
|---|---|
| Bore x Stroke | 4.08" x 3.44" |
| Displacement | 360(5.89L) |
| Compression Ratio | 8.5:1 |
| Horsepower (gross) | 245@4400 |
| Torque (gross) | 365@2600 |
| Main Bearings | 5 |
| Valve Configuration | OHV |
| Fuel | 2bbl |
In 1972, the 2bbl 360 is more conservatively rated, presumably these are net ratings.
| AMC 360 V8 | |
|---|---|
| Bore x Stroke | 4.08" x 3.44" |
| Displacement | 360(5.89L) |
| Compression Ratio | 8.5:1 |
| Horsepower (net) | 175@4000 |
| Torque (net) | 285@2400 |
| Main Bearings | 5 |
| Valve Configuration | OHV |
| Fuel | 2bbl |
In 1973, an optional 4bbl carburetor was available. The horsepower and torque ratings for this version are significantly better.
| AMC 360 V8 | |
|---|---|
| Bore x Stroke | 4.08" x 3.44" |
| Displacement | 360(5.89L) |
| Compression Ratio | 8.5:1 |
| Horsepower (net) | 195@4400 |
| Torque (net) | 295@2900 |
| Main Bearings | 5 |
| Valve Configuration | OHV |
| Fuel | 4bbl |
Photos

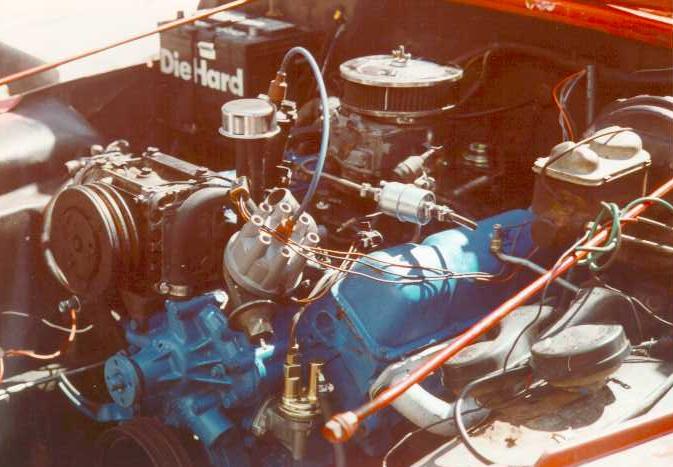

The
Jeep AMC 360 V8 engine.
Photo by Rick Boiros.

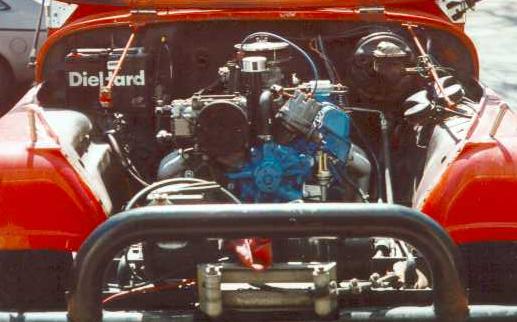

The Jeep AMC 360 V8 engine.
Photo by Rick Boiros.
